2019/03/20

New release - "Sound Lissajous Meter" ver 1.0


Sound Lissajous Meter” was newly released today.

"Sound Lissajous Meter" is a new sound analysis app that displays audio signals in Lissajous curves.

Lissajous is a planar figure obtained by combining two single vibrations vibrating in directions perpendicular to each other.

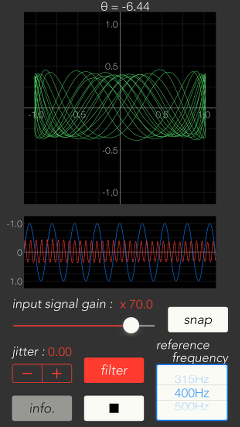

This app can be displayed in a two-dimensional curve by Lissajous in the vertical axis as a microphone input signal and the horizontal axis as a reference sine wave.

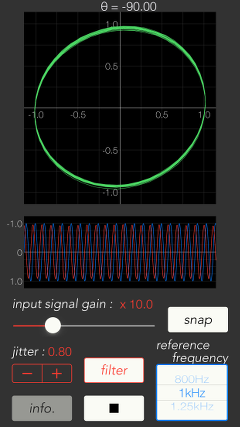

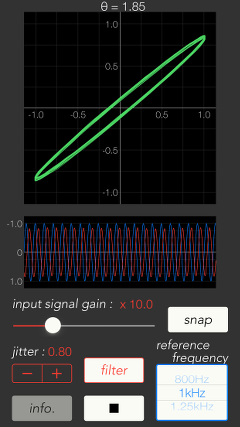

For example, when a sine wave with the same frequency as the reference sine wave is reproduced from an audio system, you can observe changes of the frequency or phase in a Lissajous curve pattern.


In the case of an unknown sound source, you can analyze the source using the correlation between amplitude, frequency and phase and the reference sine wave.

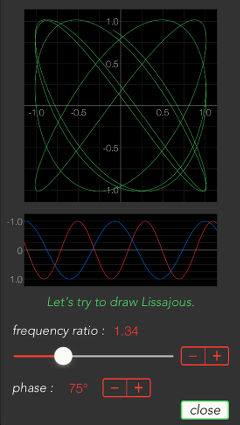

In addition, It can display Lissajous demo according to changes in frequency and phase. Please use for Lissajous pattern understanding and learning.


Please to click the following link to see the app information. It will be open the product page on AppStore.

posted by toons at 23:58 | News
